How to assemble
This product does not contain a stethoscope;
users can use it with their own accustomed stethoscope
Applicable fields
For Doctor's consultation
For Students & Education
For Telemedicine
The audio signal of this recorder is for reference only and cannot be used as the basis for diagnosis
amor Sound Logger :

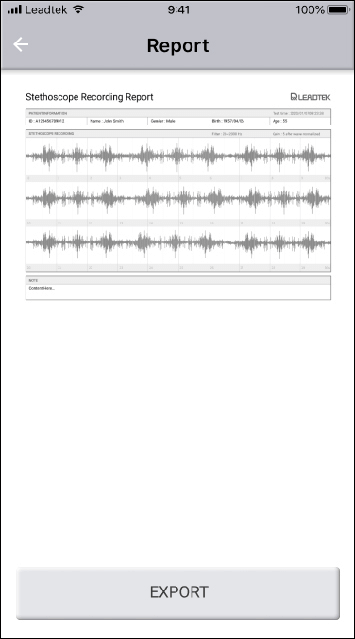

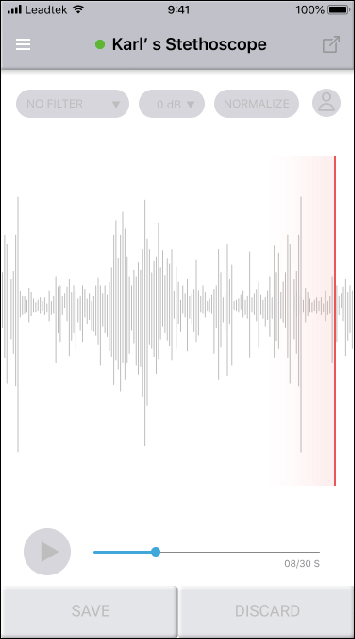

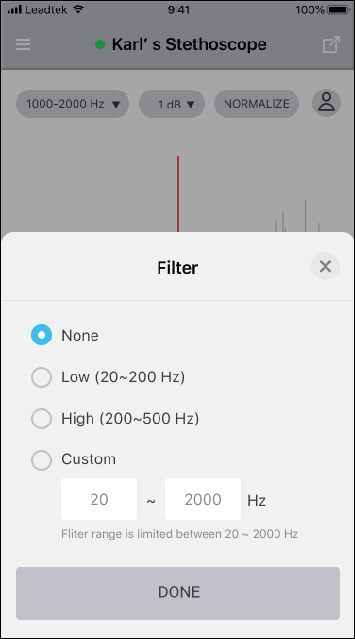

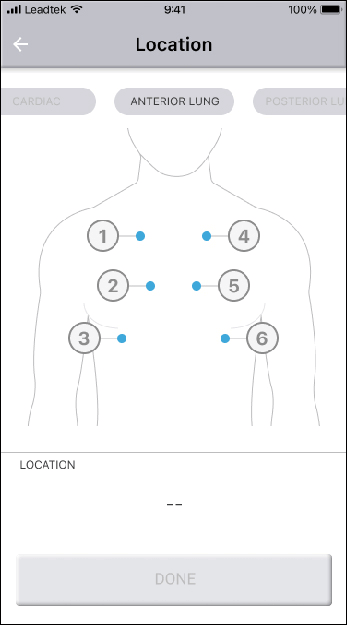

APP Measurement Screen
Specifications
| Product name /Model | amor Stethoscope Recording Device/ 8Z71 |
| Dimension | 112.5(Length) x 35.4(Width) x 36.6(Height) mm |
| Weight | 45 gram |
| Interface | OLED touch screen display |
| Input sampling rate | 8K samples/sec |
| Amplify | 32X (use Software) |
| Frequency | 20 ~ 4K Hz |
| Output | BLE 5.0/ Type-C USB |
| Battery | 150 mAh rechargeable lithium battery |
| Battery life | Up to 100 times continuous recording on one full charge |
| Power saving function | auto shutdown function after 1 minute of inactivity |
| Recording time length | 10/20/30 second |
| Memory Size | 8G SD card |
| Storage |
3000 Records(for 10 second) or 2000 Records(for 20 second) or 1000 Records(for 30 second) |
| Environment |
Operating temperature: 0⁰C ~ 40⁰C Storage and transportation temperature: -20⁰C ~60⁰C 15% to 93% relative humidity |
